ARB TIPPERS

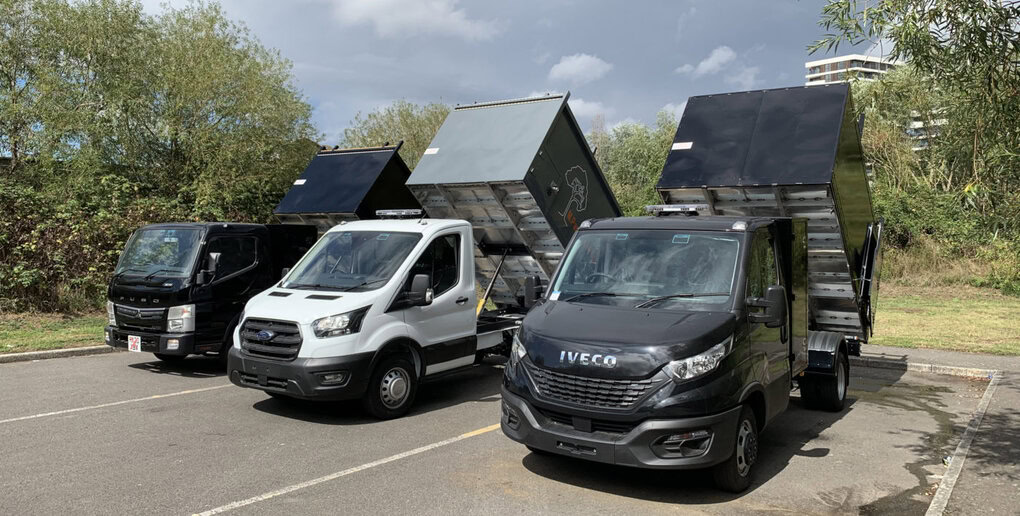

Arborist bodies for the tree surgery industry. One of our specialties and has constantly grown year on year. We have listened to what our customers require and have built hundreds of Arb trucks for customers all over the country, available on all 3.5 ton to 7.5 ton chassis including Ford, Fuso Canter, Iveco, Isuzu, Vauxhall, Citroen, Peugeot, Nissan, Mercedes & Daf.

ARB TIPPER FLOOR AND TIPPING GEAR

The strength of the body is in the floor & tipping gear, we offer both steel & aluminium construction. Our aluminium floor which is our most popular & recommended for Arb Tippers is constructed with 4 mm aluminium sheet, we cut, fold & fully weld to give it the strength where needed along with added bonus of being rust resistant and being able to stand the test of time, our fully welded aluminium floor is 22% lighter than steel adding approximately an extra 120 kg of pay load to the average 3.5 ton GVW tipper. The Tipmaster tipping rams are designed for rugged work and coupled with the SPX power pack effortlessly tip the load in hand.

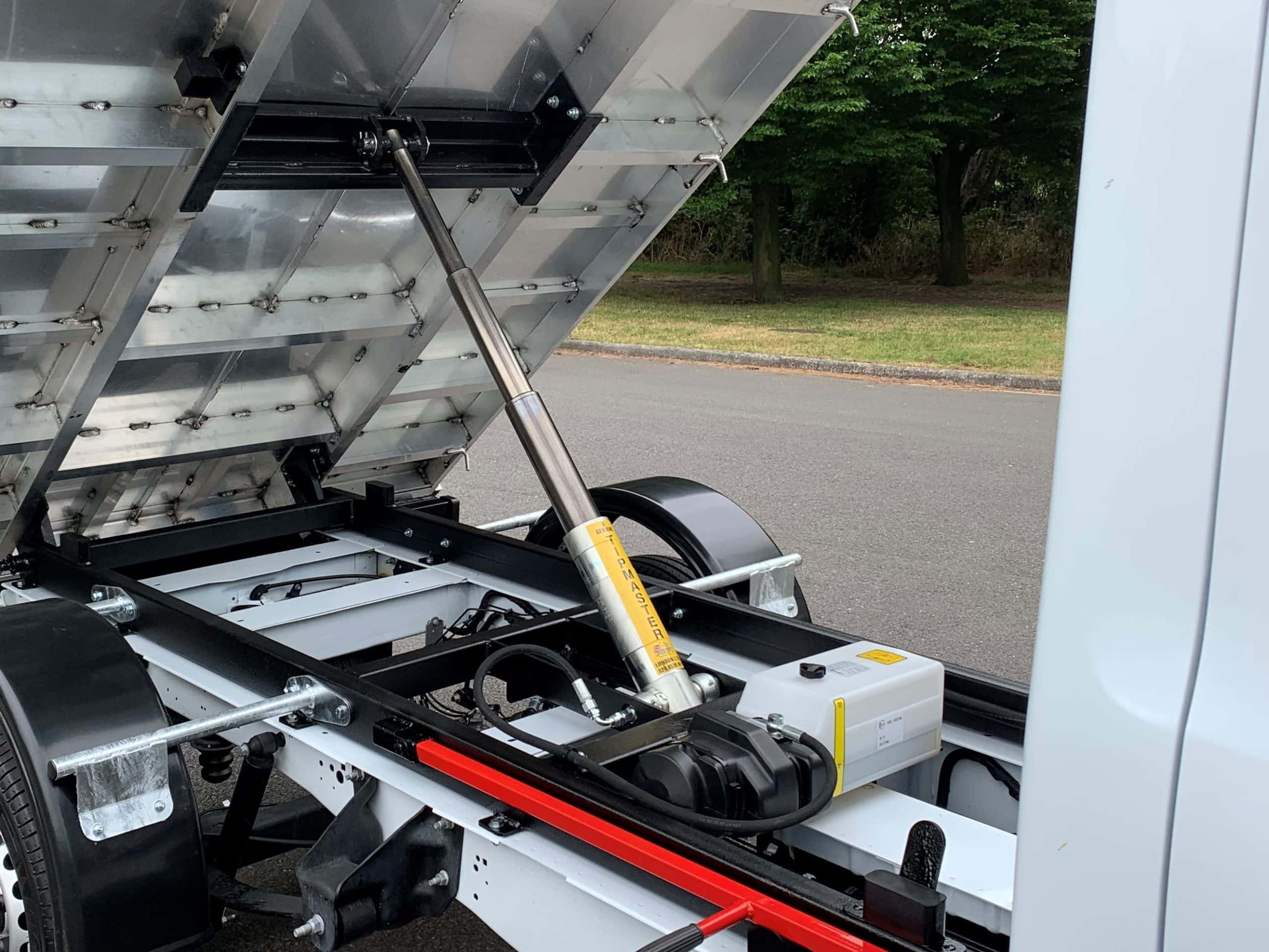

3.5 TIPPING GEAR

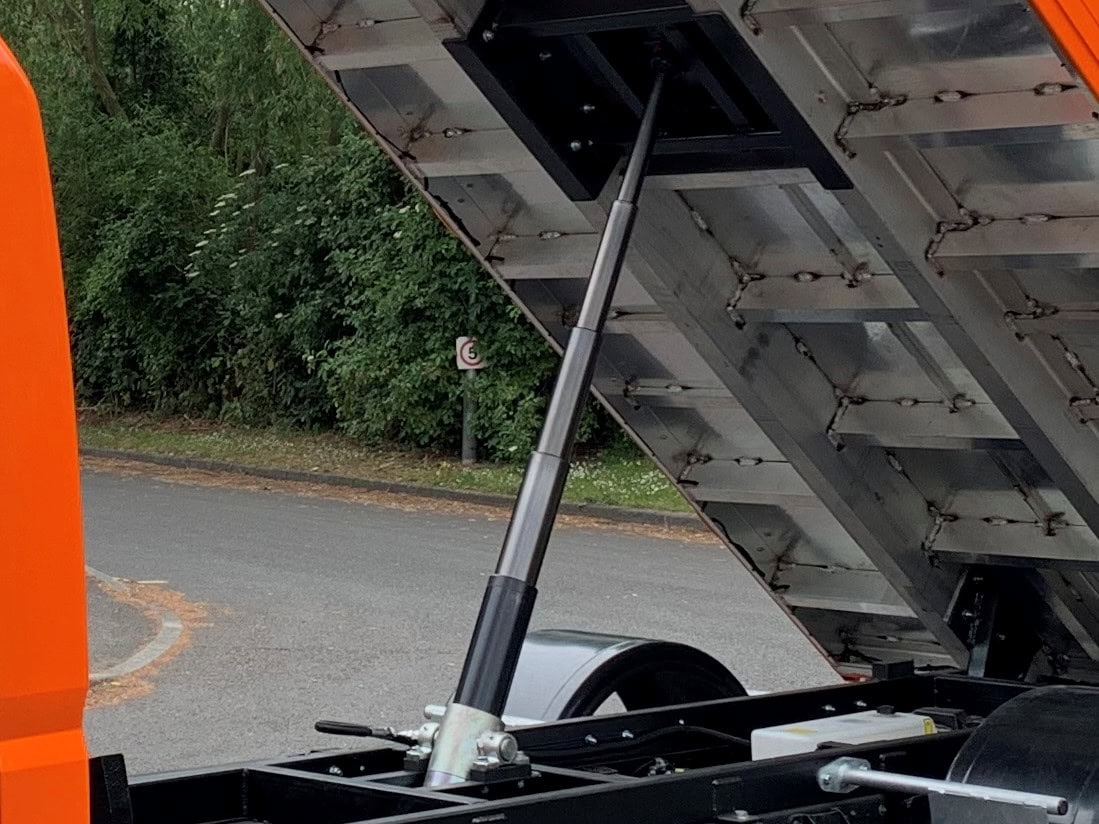

7.5 TIPPING GEAR



ALUMINIUM WELDED FLOOR

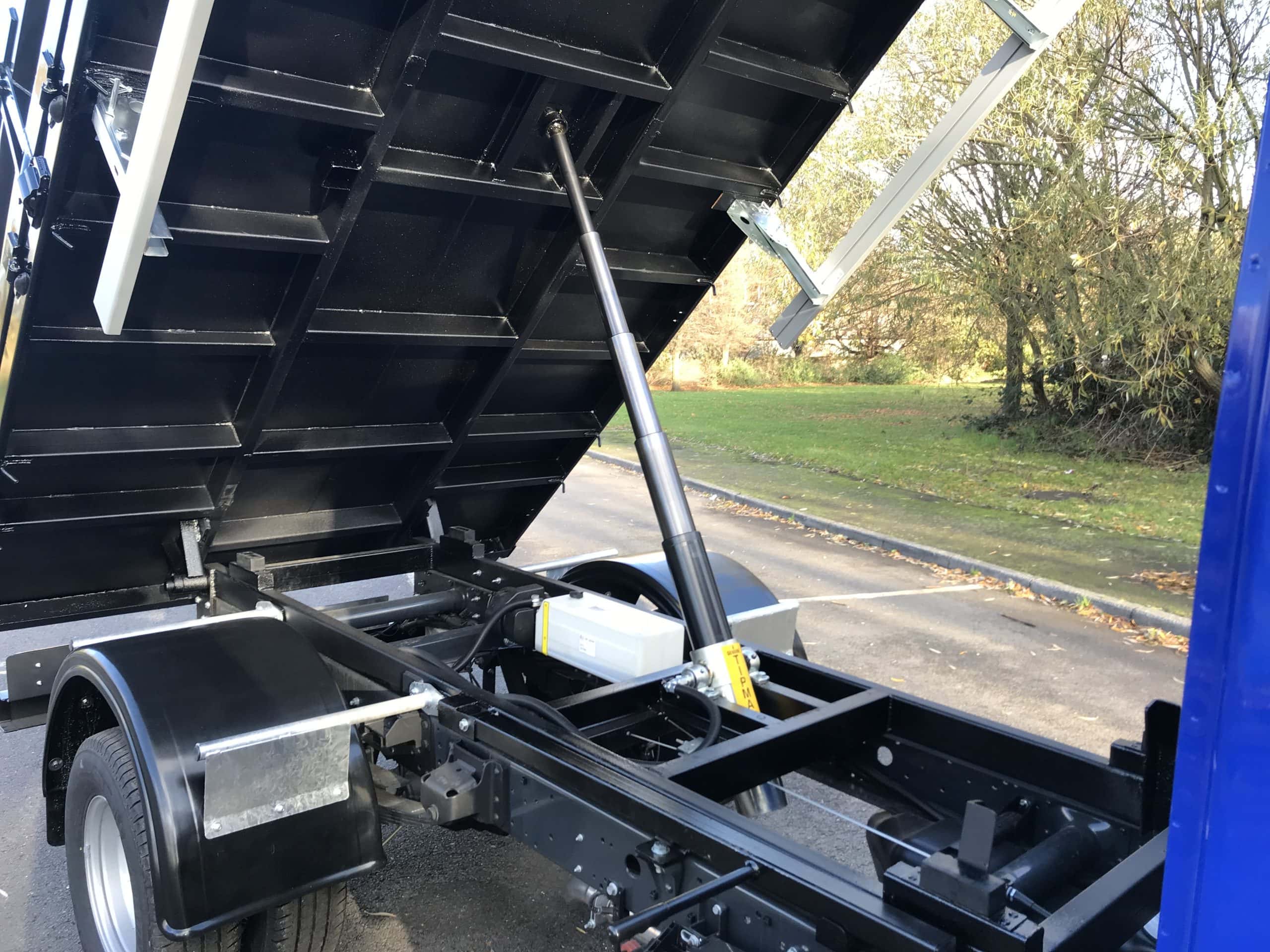

STEEL FLOOR



ARB TIPPER SIDES

Arborist tipper bodies built to your specification, Options of sides in GRP or aluminium plank. The side height can be specified to suit the chipper being used. The sides can be tapered at the rear if required.

ALUMINIUM PLANK SIDES

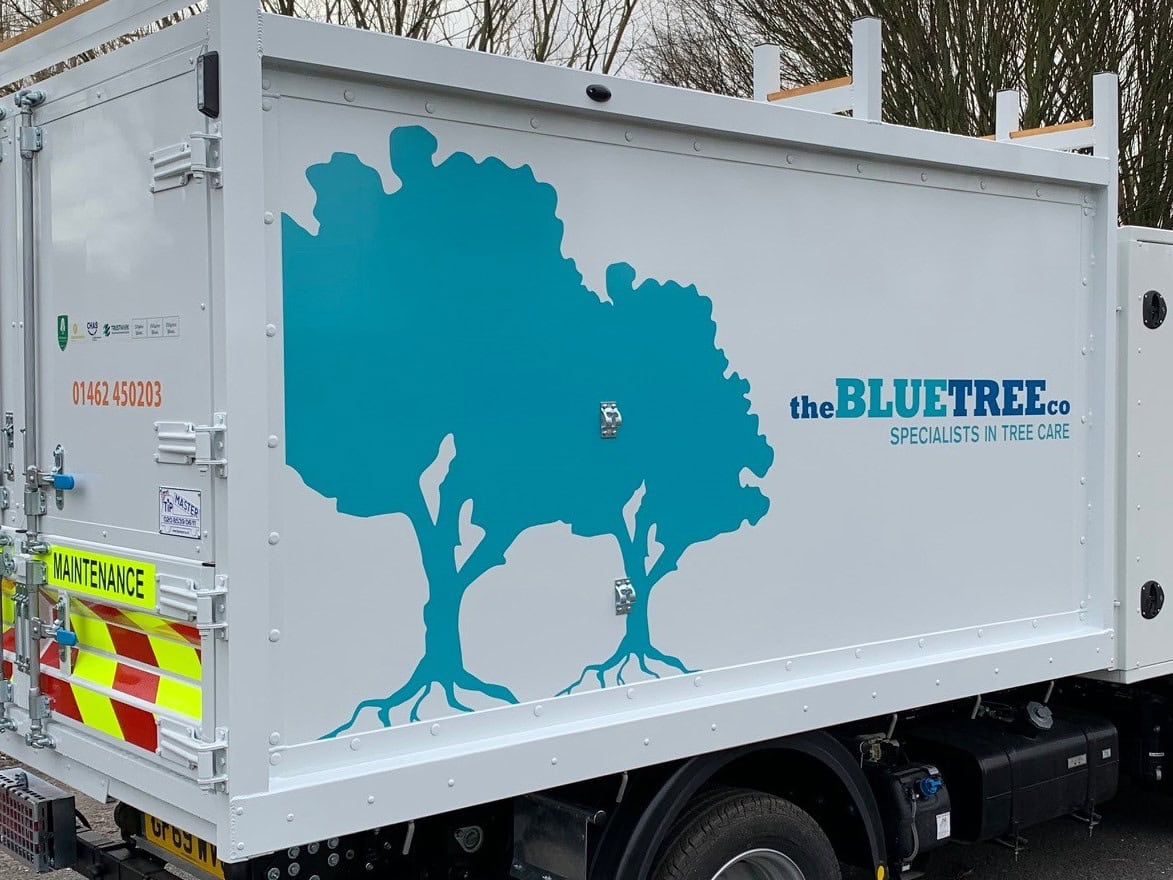

GRP SIDES



TAPERED ALUMINIUM SIDES





TAPERED GRP SIDES



REAR BARN DOORS

The rear barn doors can be specified to your requirements. We offer in GRP or aluminium with tail boards, lower barn doors & upper barn doors all incorporated with ladder racks.

V  CUT BARN DOORS OVER ALUMINIUM WELDED



The lower double skinned barn doors are fabricated from aluminium sheet, light & durable, size options of 400 mm & 600 mm. The Upper barn doors are constructed in GRP with a V cut to allow chipping into the body with the doors in the closed position. Body heights can be specified to suit your needs.

FULL HEIGHT BARN DOORS





Full height barn doors with a V cut, this option can also be specified in aluminium & without the V cut.





ALUMINIUM WELDED BARN DOORS



Where rear upper barn doors are not required we offer just the lower barn door, constructed in aluminium sheet, its double skin is light & durable & can be built from heights ranging from 400 mm to 800 mm. standard specification included double locking bars.





ALUMINIUM PLANK OVER LOWER BARN



Planked barn doors, both Upper & lower can be specified to the sizes required, options of natural & anodized, double locking bars as standard.

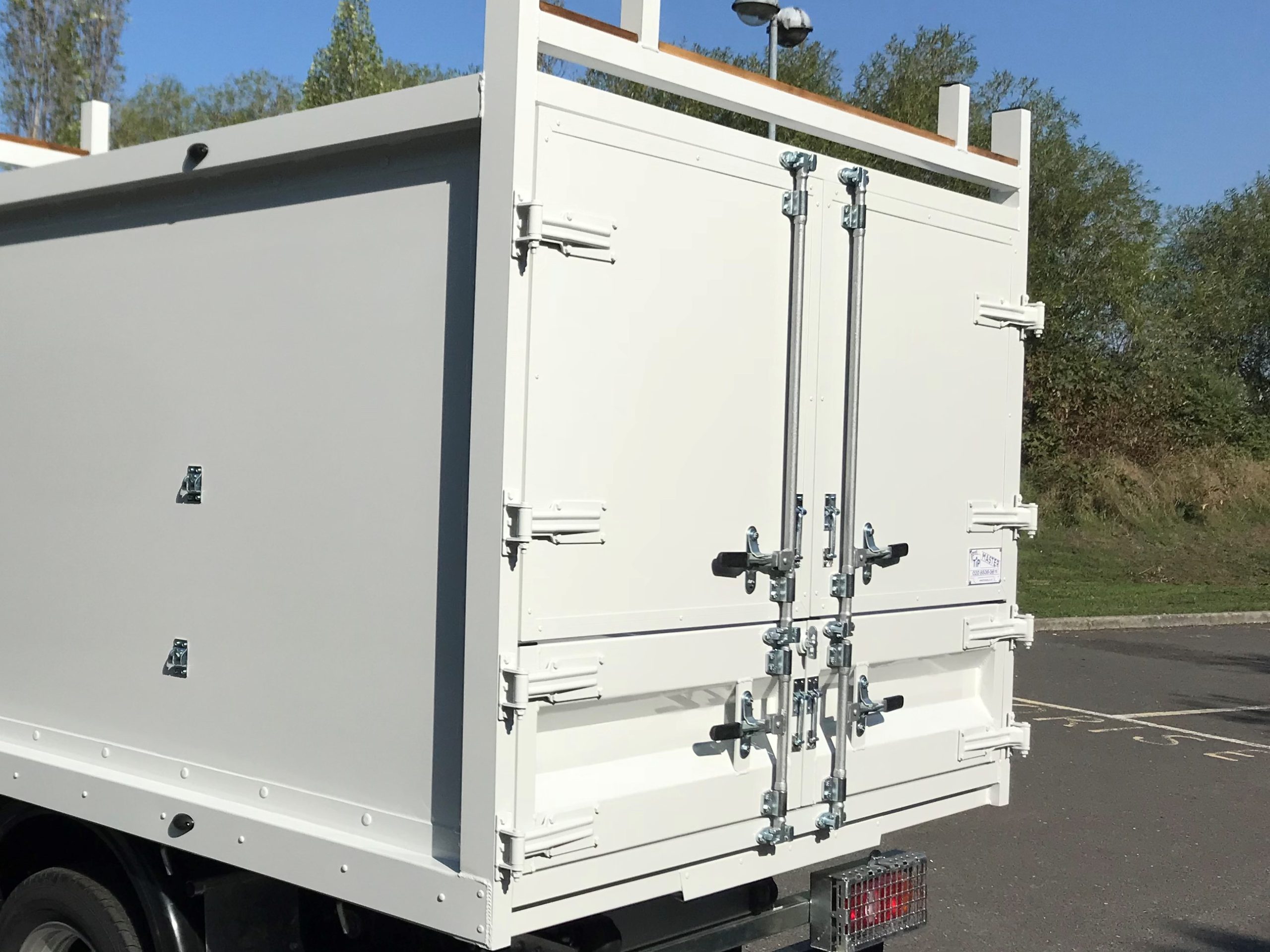

BARN DOORS OVER ALUMINIUM WELDED LOWER BARNS



The lower double skinned barn doors are fabricated from aluminium sheet, light & durable, size options of 400 mm & 600 mm. The Upper barn doors are constructed in GRP with double locking doors, height of body can be specified to meet with arborists requirements.

ALUMINIUM PLANK REAR BARNS OVER TAIL BOARD



Aluminium plank, tail boards available in size required with upper barn doors, this plank can be specified in natural aluminium which is great for painting or as an anodized finish.

ALUMINIUM WELDED TAIL BOARD



Double skinned light weight & tough tail boards built using sheet aluminium, size options available from 400 mm.

ROOF RETURNS

Roof returns on Arborist tippers can be specified to suit your requirements, we offer flat roof returns to cover the front ¼ all the way to full roofs, we offer load bearing & light weight options including raiseable roofs & tarpaulin options.

FLAT ROOF RETURN



RAISED ROOF RETURN



TARPAULIN



FULL ROOF



TOOLBOXES

The tool box is an important option for many Arborists, we offer stand alone boxes, boxes built into head board & under body boxes. Unless otherwise specified we construct in aluminium & GRP with options of side opening & roller shutter doors along with shelving & additional locks.

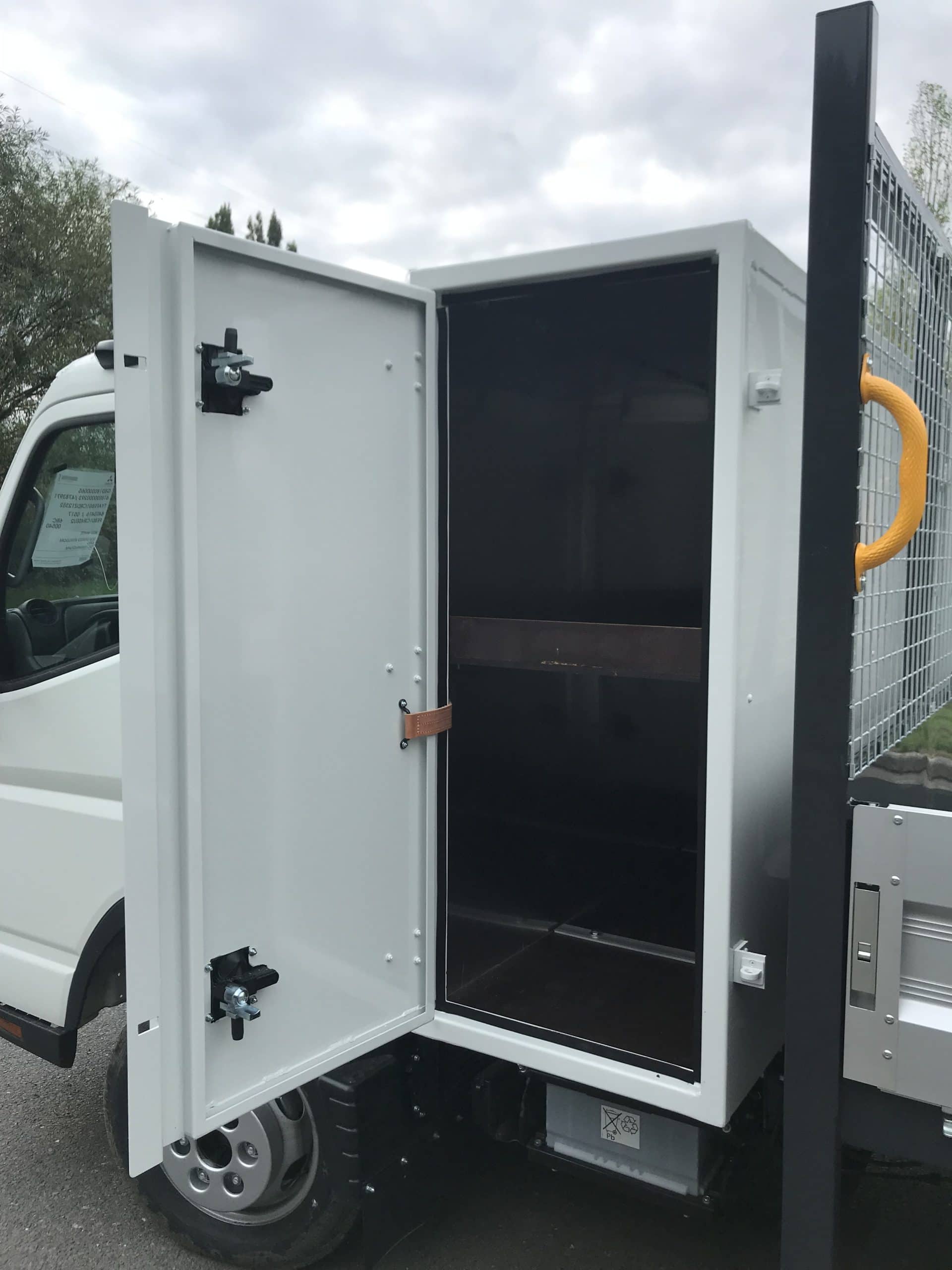

TOOLBOX WITH SIDE OPENING DOOR

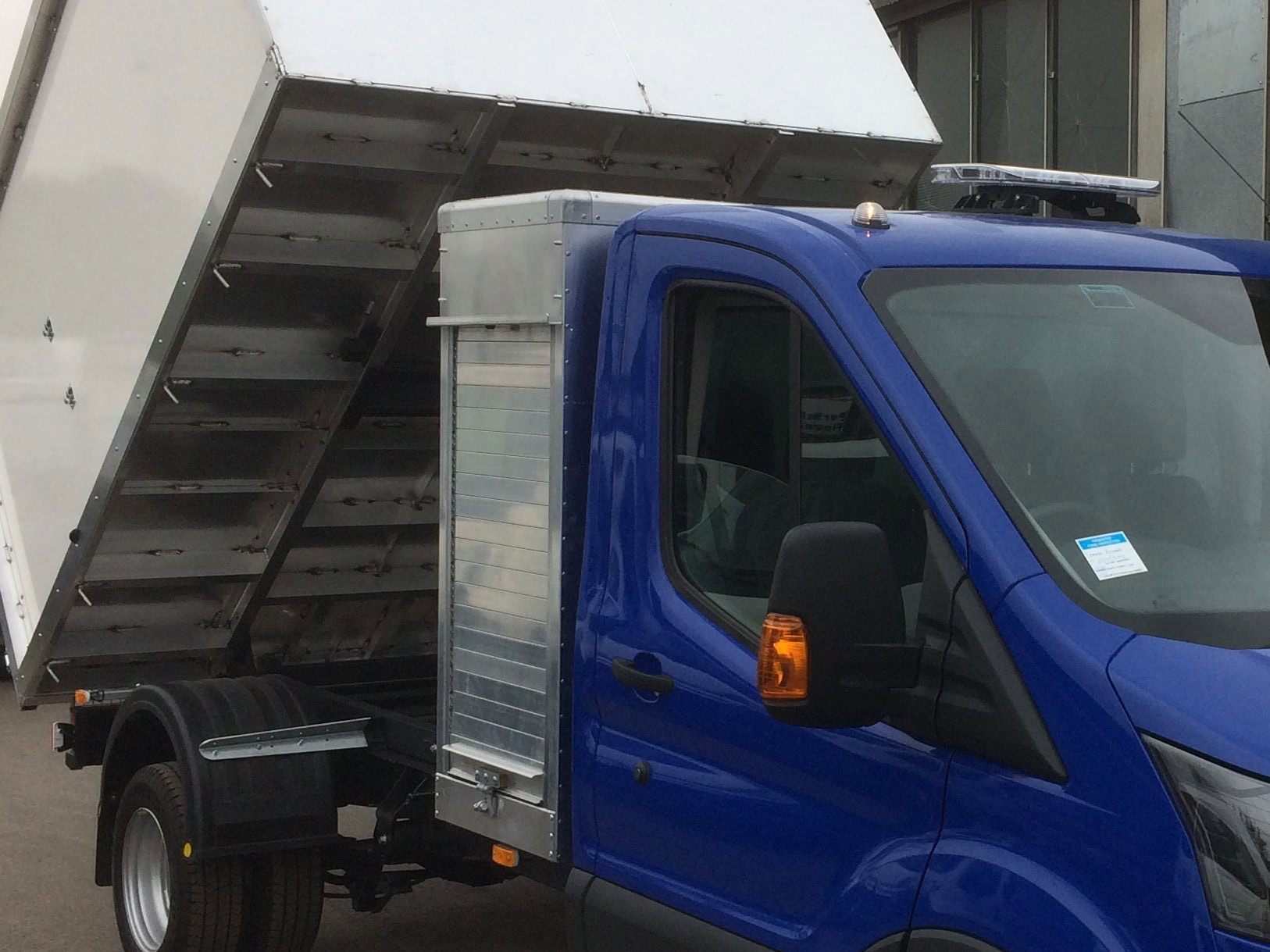

TOOLBOX WITH ROLLER SHUTTER DOORS

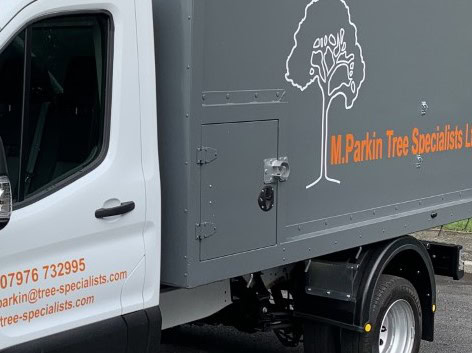

BUILT INTO HEAD BOARD

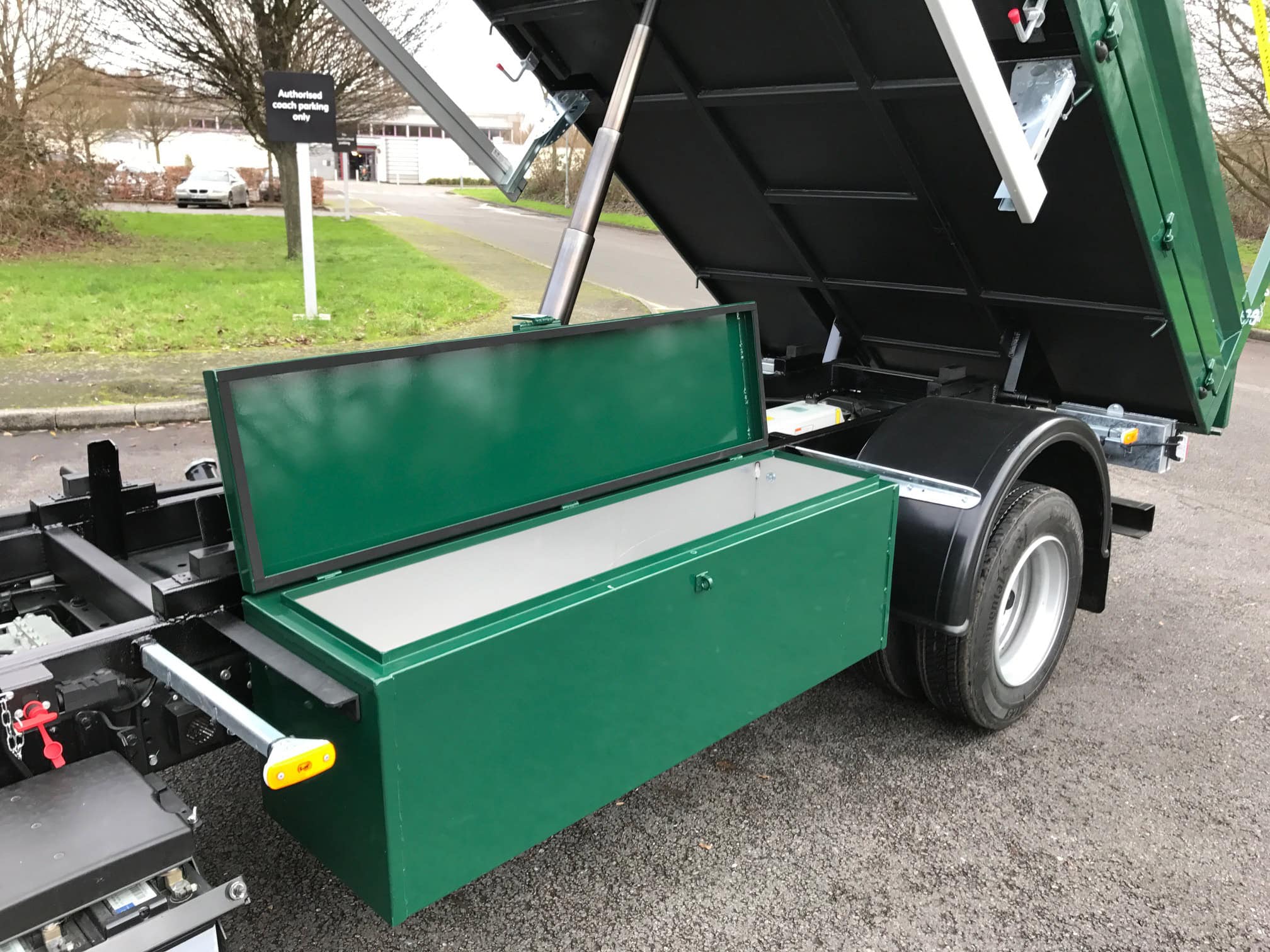

UNDER BODY BOX



ARB TIPPER BUILDER

We can offer our conversions to all major chassis and hold type approval for all our designs. Most tree surgeons have a way of working and know how they like to have their vehicles and tippers set up, we understand your requirements and before any build takes place a full drawing and weight calculation takes place to ensure build is correct first time. We use top grade materials that will last the test of time in what can sometimes be a harsh environment.
